Aluminum Dross Cooling and Screening Drum

Overview

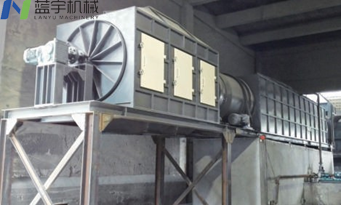

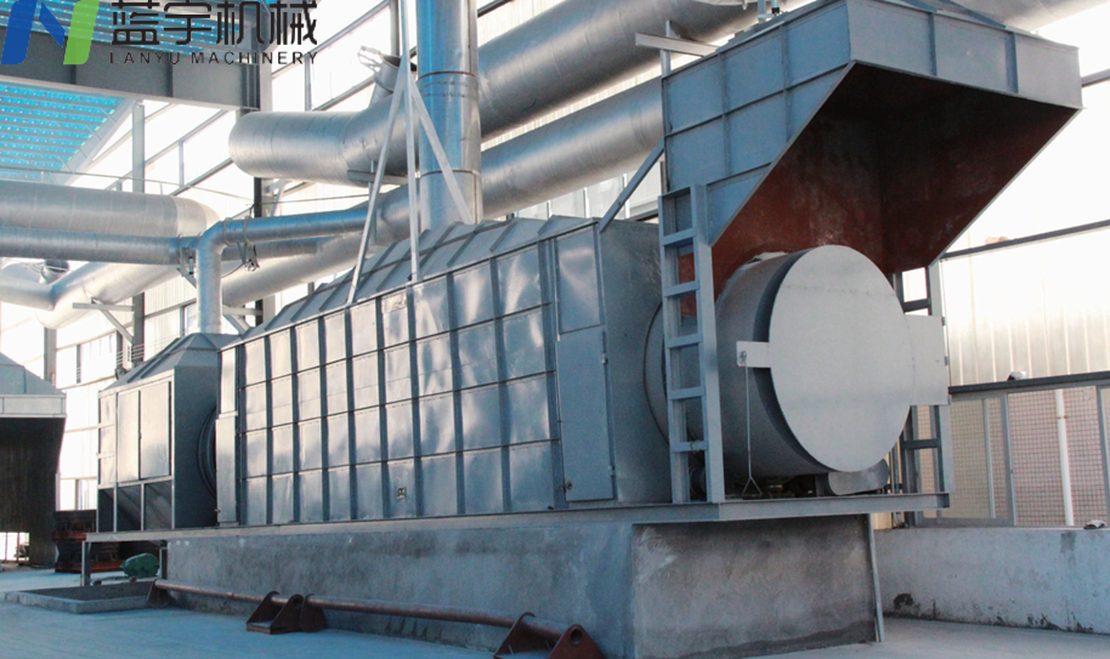

The screening-type cold ash drum is a cooling and screening device used in conjunction with rotary furnaces, primarily for processing hot aluminum dross. It utilizes a spray cooling method to rapidly reduce the temperature of aluminum dross from over 700°C to below 50°C, effectively preventing combustion and oxidation. As a critical component in the recycling process of aluminum dross, this equipment plays a significant role in improving aluminum recovery rates. The screening-type cold ash drum consists of components such as water tanks, cooling drums, ball mill drums, screening drums, and control systems. It is available in three series based on drum diameter: 1200-type, 1600-type, and 1900-type. Each series offers five additional specifications based on length: 8 meters, 11 meters, 13 meters, 15 meters, and 17 meters.

Overseas Project Support

For export projects, Lanyu can configure the aluminum dross cooling and screening drum around local fuel or power conditions, plant layout, automation level, operator workflow and environmental requirements. The drum is usually specified together with a rotary furnace or dross handling line, so cooling capacity and screening targets should be confirmed early.

For a faster technical proposal and quotation, please share:

• Hot dross quantity per batch or per hour and inlet temperature
• Target outlet temperature and required cooling method
• Screening size, separation target and downstream material handling method
• Dust collection and workshop layout requirements
• Destination voltage, frequency and local safety requirements

Technical Specifications

• Aluminum dross processing capacity: 2T-6T/hour
• Cooling method: Water spray
• Temperature of processed aluminum dross: Can be directly bagged, below 50°C
• Rotation speed: 0-8 r/min
• Screening classification: 40-100 mesh (optional)
